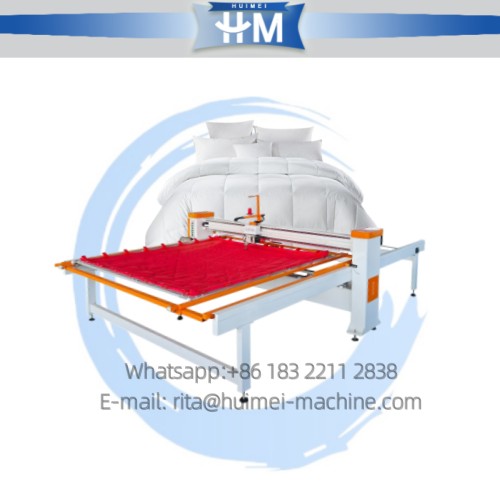

Single needle quilting machine quilt comforter duvet sewing machine computerized
Frame driven or head driven single needle duvet sewing machine
2000-3500 RPM based on different models and configuration
can upload DST new patterns at will through USB flash disk
Whatsapp:+ 86 18322112838
E-mail: rita@huimei-machine.com
Single needle quilting machine quilt comforter duvet sewing machine computerized

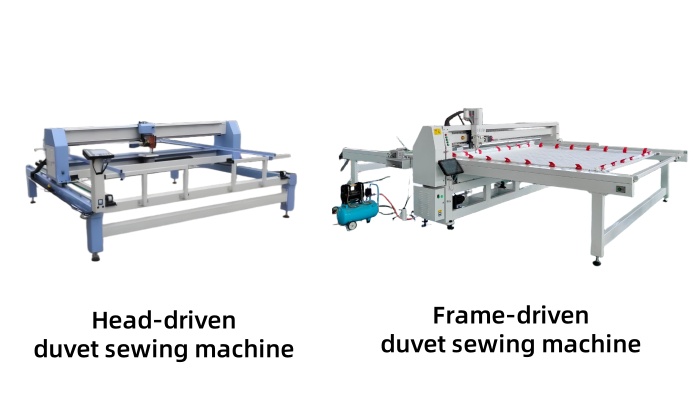

In order to meet the requirements of bedding manufacturers with different production scales and output requirements,Huimei, as one professional quilting machine manufacturer with 20 years production experience, provide two main series : head-driven duvet sewing machine and frame-driven duvet sewing machine.
The head-driven duvet sewing machine adopts the operation mode of head moving and fabric not moving, which occupies a small area and has low cost. It is suitable for workshop-style production with limited space and limited budget.

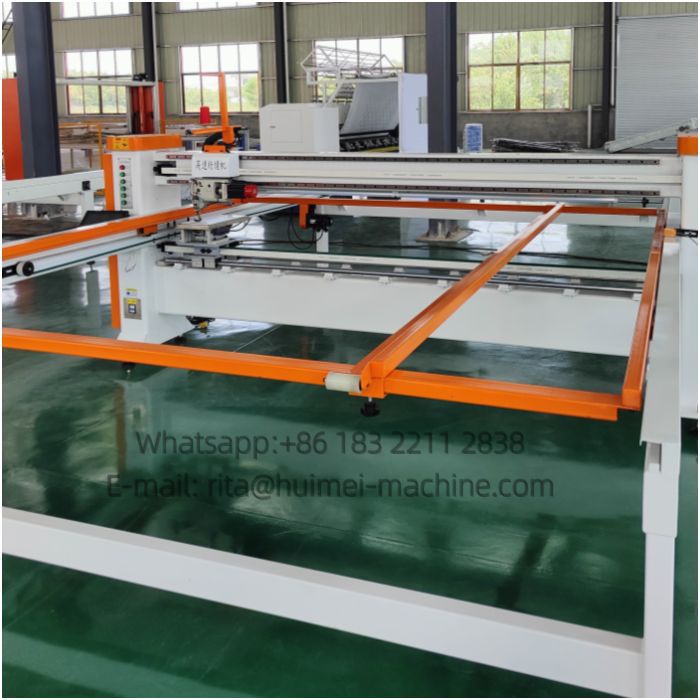

The frame-driven duvet sewing machine adopts servo motor and direct drive head. The maximum speed can reach 3500 rpm. The output is high, which is 2-3 times that of the head-driven quilting machines. It is suitable for large factories or manufacturers with high output requirements.
| Type | HM-H01 | HM-H02 | HM-H03 | HM-H04 | HM-H05 |
| Movement ways | Head driven | Head driven | Frame driven | Frame driven | Frame driven |
| Motor | Head frequency conversion + stepper motor | Head servo motor+stepper motor | Head servo motor+stepper motor | Full servo motor | Full servo motor |

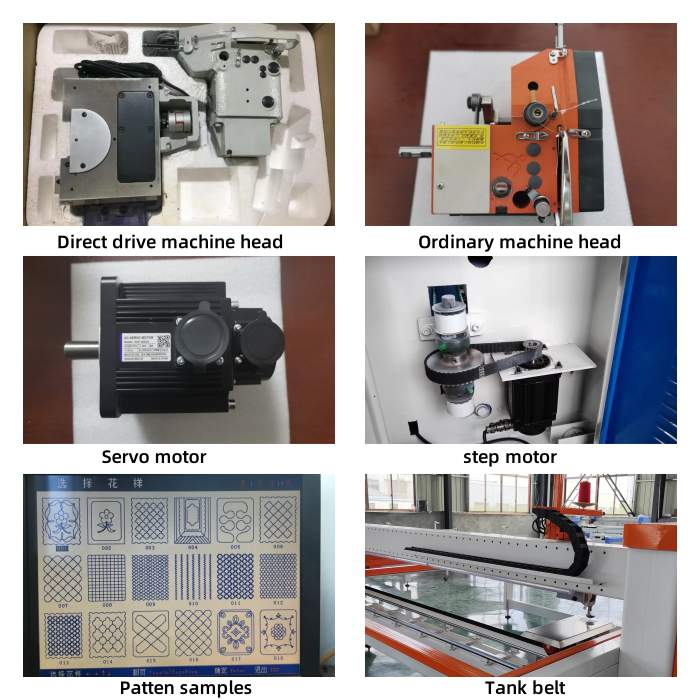

| Machine head | Ordinary machine head | Ordinary machine head | Direct drive head | Direct drive head | Direct drive head+auto lifting |
| Frame | Single beam, small and thin, small size | Single beam, small and thin, small size, 3 in 1 host | Single beam, small and thin, automatic thread trimming, automatic oiling | Single beam, automatic thread trimming, automatic oiling | Double beams, automatic thread trimming, automatic oiling |
| Screen | Multi-function keyboard screen | Multi-function keyboard screen | Touch screen | Touch screen | Touch screen |
| Quilting speed | 2000-2200 RPM | 2000-2200 RPM | 2200-2500 RPM | 2800-3000 RPM | 3000-3500 RPM |
| Quilting thickness | 3~4 cm | 3~4 cm | 3~4 cm | 3~4 cm | 3~ 8 cm |
| Production capacity in 8.5 hours | 100 pcs | 150 pcs | 150-200 pcs | 250-300 pcs | 350 pcs |
In common of two different head movement duvet sewing machine:
1. Our duvet sewing machine has a variety of built-in patterns, and you can upload new patterns at will;
2. All types of duvet sewing machine can prompt operation on the screen, easy to operate;
3. Automatic shutdown function in case of disconnection
......
If you want get more details different about the head driven and frame driven duvet sewing machine, pls contact us for more information and video.
The service of duvet sewing machine:
1.Recommend suitable model and size according to requirements
2. only 1 set as trailer order, it is good for test the quality
3. 7*24 hours online service
4. bulk packing or wooden box packing is avaiable
