3500 RPM computerized single needle duvet machine quilting machine
Huimei provide 5 models, 4 size for each model duvet machine quilting machine.
They have different quilting speed (2000-3500 RPM), quilting thickness (max 1200 gsm or max 8 cm) , production capacity and structural framework etc.
Meeting the quilting needs of different customers is the goal that Huimei has been working hard to achieve.After years of development and continuous improvement in production technology, we provide quilt/comforter/duvet manufacturers with a variety of machine quilting machine with various models and configurations.

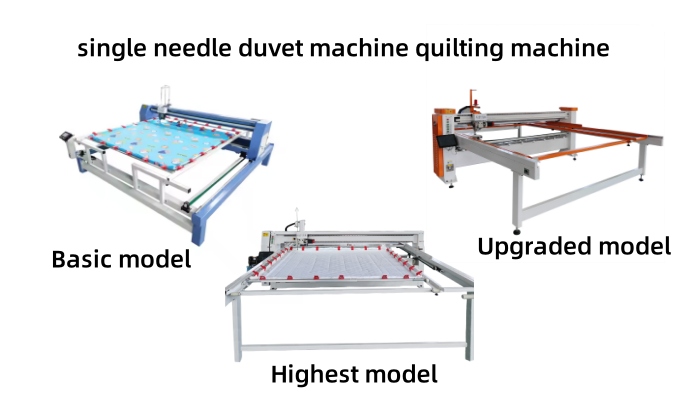

| Model | Basic model HMH01 | Upgraded model HMH04 | Highest model HMH05 |
| Quilting speed | 2000-2200 RPM | 2800-3000 RPM | 3000-3500 RPM |
| Machine head | Ordinary machine head | Direct drive head | Direct drive head, automatic lifting |
| Motor | Head frequency conversion + stepping | Full servo motor | Full servo motor |
| Frame | Single beam (small and thin beam), small size | Single beam, automatic thread trimming, automatic oiling | Double beam, automatic thread trimming, automatic oiling |
| Screen | Keyboard screen | computer touch screen | computer touch screen |
| Production capacity in 8.5 hours | 100 pcs | 250-300 pcs | 350 pcs |
The main feature of basic machine quilting machine HMH01
1: Small footprint: When quilting, the fabric does not move, the machine head moves in a way that saves space, and only occupies 3/5 of the space of other quilting machines
2:Multi-function keyboard screen, threading buttons, etc., real-time display of quilting status and operation instructions, simple operation
3:Multiple automatic operations: automatic shutdown when thread is broken; automatic memory function when power is off, press the switch to quilt normally after turning on the machine; automatic pattern track search function, which can be used to advance and retract the needle on the screen
......Please contact sales for more details
The main highest model machine quilting machine HMH05
1: Double beam structure, thickened steel, full servo head + optical axis track, quilting speed can reach 3000-3500 RPM;
2:All patterns are stored on the hard disk, and DST new patterns can be uploaded at will;
3: Computer touch screen,Free switch among Chinese, English and Russian, the operator can set work paramters based on the screen showing, such as stitch length, needle speed;
4:Direct drive head ,automatic thread trimming, automatic oiling, automatic lifting,a variety of patterns can be selected, quilting independent small patterns
5:When quilting complex patterns, repeat the quilting to ensure that the stitches do not deviate on one line and the stitch length remains stable.
......Please contact sales for more details
The service of machine quilting machine:
1: packing: bulk packing is standard or wooden box packing (optional)
2: various quotation: EXW, FOB, CFR,CIF or DDP
3: MOQ: 1 SET
4: 7*24 hours online service
5:Strict inspection before leaving the factory
