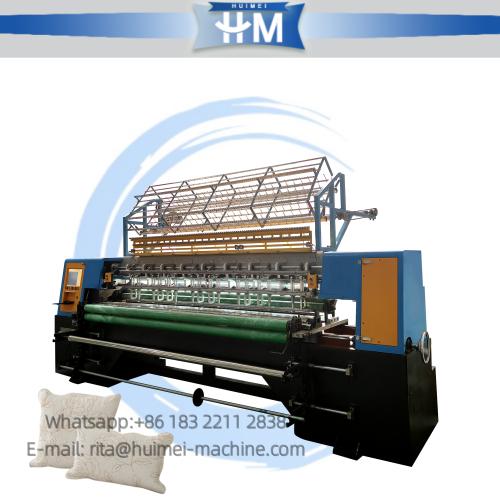

China multi needle quilting machinery
Can used alone, and work together with cutting machine and automatic cotton feeder
More than 130 built-in pattern design and add new pattern at will
Whatsapp:+8618322112838
E-mail: rita@huimei-machine.com
As one China multi needle quilting machinery manufacturer, Huimei has been committed to providing high-quality, multi-needle quilting machines of various specifications.
Our sales staff will recommend the product configuration suitable for you according to your specific requirements. such as max quilting width, quilting thickness and pattern type (2B or 3B) etc.
We list the parameters of popular machines for your reference, also welcome to put forward your own specific requirements:
| Model | HM-M0166 | HM-M0196 |
| Needle number | 132 | 192 |
| Needle distance | 25.4 mm | 25.4 mm |
| Quilting speed | max 850 RPM, 150-200 m per hour | max 850 RPM , 150-200 m per hour |
| Quilting thickness | 1000 gsm | 1000 gsm |
| Quilting width | 1680 mm | 2440 mm |
| Power | AC 380 V 3-6KW | AC 380V 3-8KW |
| Machine size | 3500*2600*2500 mm | 4600*2600*2500 mm |

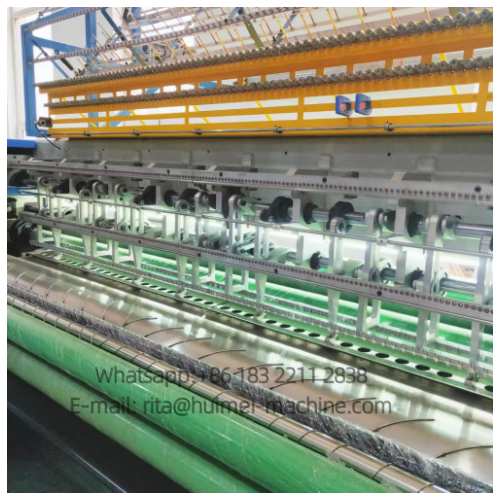

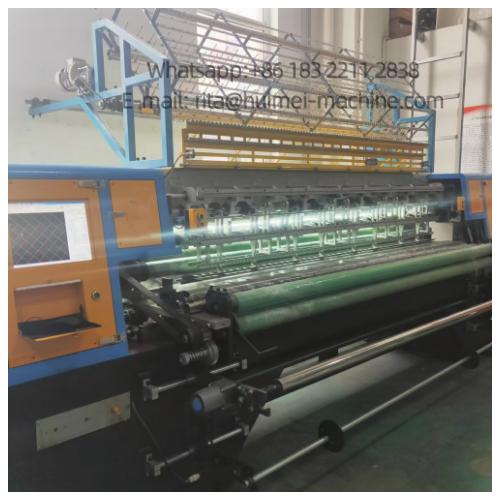

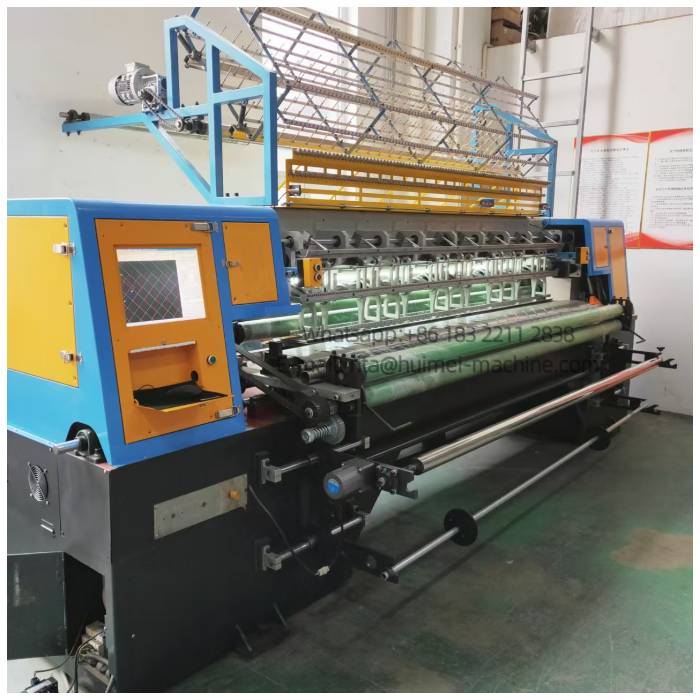

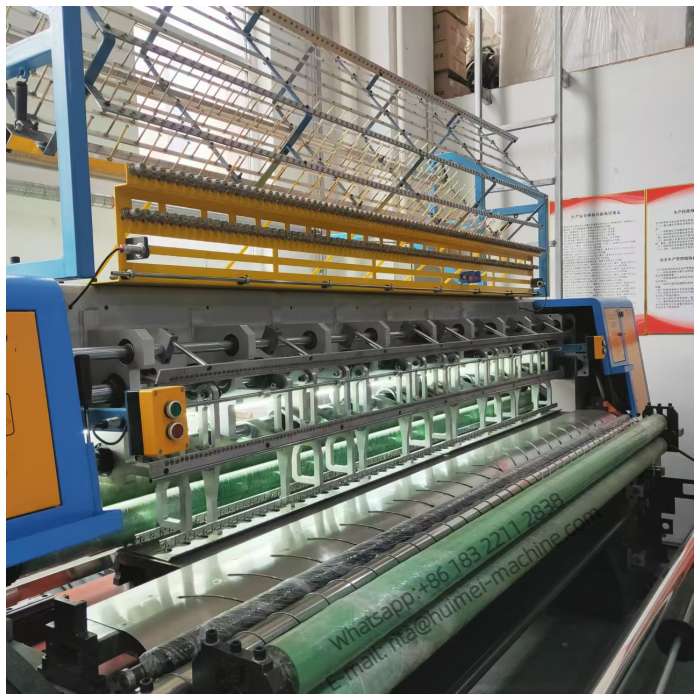

China multi needle quilting machinery can be as individual quilting machine, also can be as a part of automatic wadding production line, work together with cutting machine and cotton feeder.
It quilts multiple needles at the same time, and can quilt multiple points at the same time, with high efficiency and having the following features:
1) High technology, high configuration support
a. CNC control and advanced mechanical manufacturing technology.
b. Windows XP operating system, more durability and powerful functions.
c. Saddles and Roller adapt servo motor devices, high efficiency and high output
d.X-axis travel up to 12 inches, capable of sewing large patterns;
e.Left and right limit over travel shutdown function;
f.Infrared sensor device to protect operator safety；
g.The required output can be set in advance, and the machine will automatically stop when it reaches the required output;
h.Automatic stop function when thread is broken or when the thread is exhausted.
........
2) Unlimited quilting patterns
a. built-in more than 130 patterns for your choice

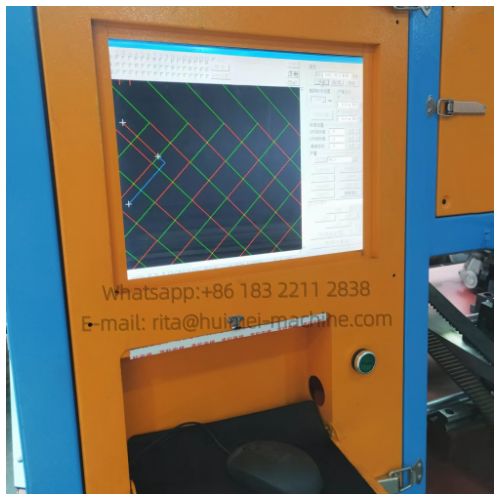

b.patterns editing function: the operator can edit pattern on the host directly or add new patterns at will
c. pattern compensation functions can advoid pattern deformation problems caused by thickening of materials
d, you can choose 2 rows needleS (2B) for small patterns or choose 3 rows needles (3B) for small or large patterns.
e. Random quilting and interval quilting are optional,
3） Integrated design, small footprint.
Metric design, no worries about accessories, easy maintenance
