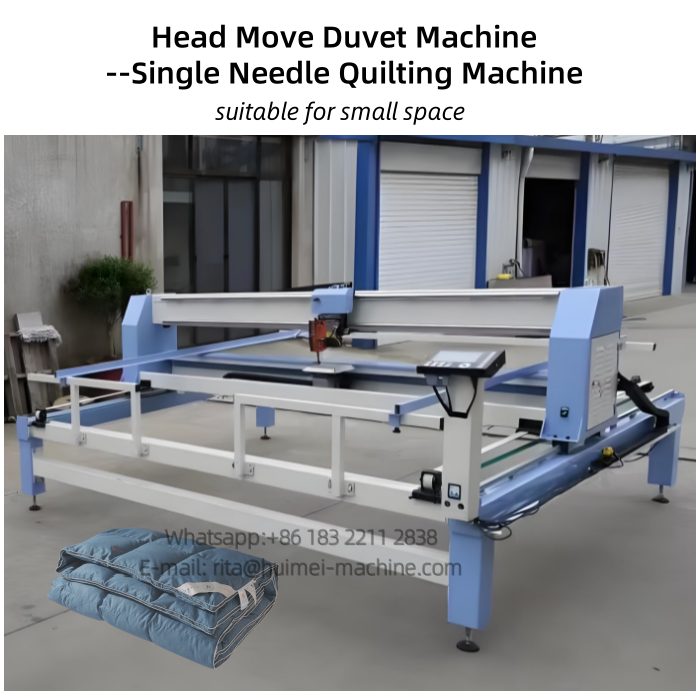

Head move duvet machine single needle quilting machine for small space
Small footprint: only occupy 3/5 of other quilting machine
Suitable for small space operation
Whatsapp:+86 183 2211 2838
E-mail: rita@huimei-machine.com
The original intention of Head move duvet machine single needle quilting machine :
When you have limited space or budget and want to start a quilt/ comforter /duvet processing business, it is especially important to choose an economical and small-footprint quilting machine. As a professional quilting machine manufacturer, Huimei specially designed this head move duvet machine single needle quilting machine.
According to different requirement about of quilting size, output, thickness etc. we provide the following items of duvet machine
Product type | HM-H04-2224 | HM-H04-2426 | HM-H04-2628 | HM-H04-2830 |
Quilting size | 2.2*2.4 m | 2.4*2.6 m | 2.6*2.8 m | 2.8*3.0 m |
Needle drop size | 2.0*2.2 m | 2.2*2.4 m | 2.4*2.6 m | 2.6*2.8 m |
Sewing machine | single head, single needle ,doule line,lock stitch machine head, big rotary shuttle | |||
Quilting thickness | max 1200 gsm | |||
Quilting speed | 2000-2200 RPM, adjustable stitch 2-7mm | |||
Machine size | 2.8*2.8*1.2 m | 3.0*3.2*1.2 m | 3.2*3.4*1.2 m | 3.4*3.6*1.2 m |
Weight | 650 kg | 700 kg | 750 kg | 800 kg |
Main features of Head move duvet machine single needle quilting machine:
1) Small overall footprint: only 3/5 of the footprint of other quilting machine, it is suitable for limited space or want to place more quilting machines;
2)High precision: During quilting, the fabric does not move, but the quilting head moves, which largely ensures the precision of quilting;
3) Equipped with multi functional keyboard pannel, One-click threading and other operations are very simple;
4) When the machine is stopped, the needle automatically stops at the high position, and the machine stops automatically when the thread is broken;
5) Real-time display of quilting status and prompts for operation methods;
6) Automatic pattern trajectory search function, that is, the screen can be used to advance and retreat the needle
7) power-off automatic memory function. After turning on the machine, you can quilt normally by pressing the power key.
8) Provides equipment detection function, which can quickly test various external information of the machine, and facilitates and quickly finds faults.
......

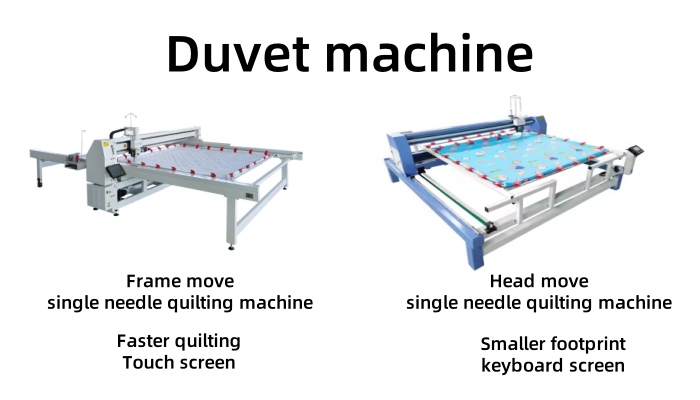

In addition to head move duvet machine single needle quilting machines, we also provide frame move quilting machines with higher configuration, faster speed and higher production capacity. Please contact us and we will provide appropriate configuration suggestions according to your requirements.
