High Speed Automatic Quilting Machine Ultrasonic
300-1800 m/hour ultrasonic quilting speed and easy to operate system.
various width and frequency can be choice
Whatsapp:+86 183 2211 2838
E-mail: rita@huimei-machine.com

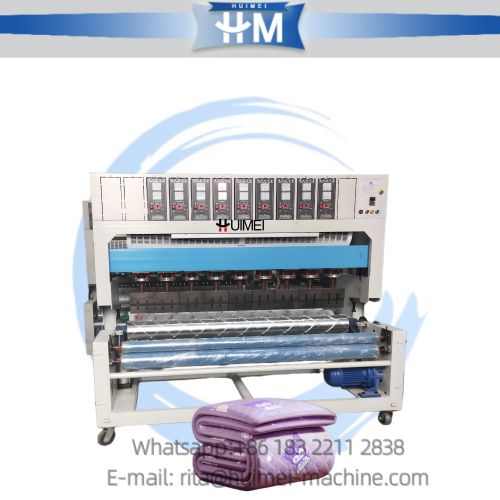

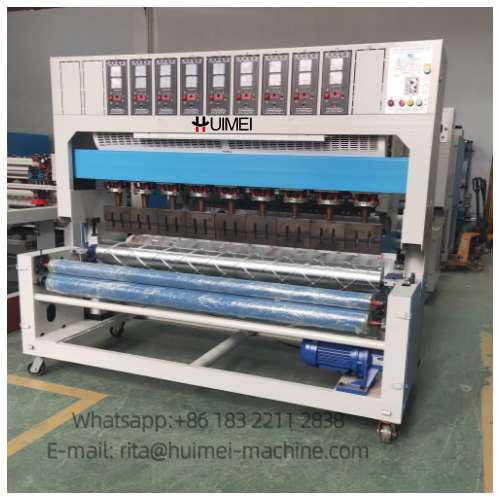

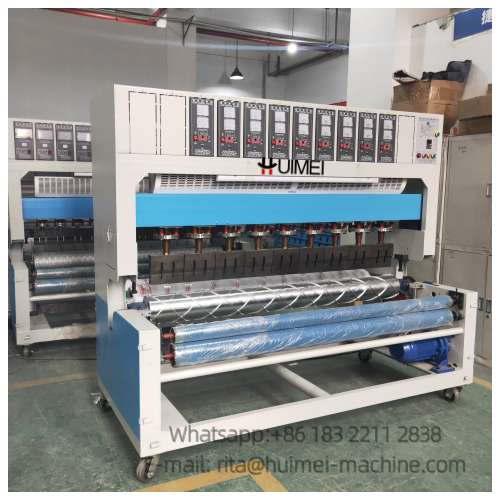

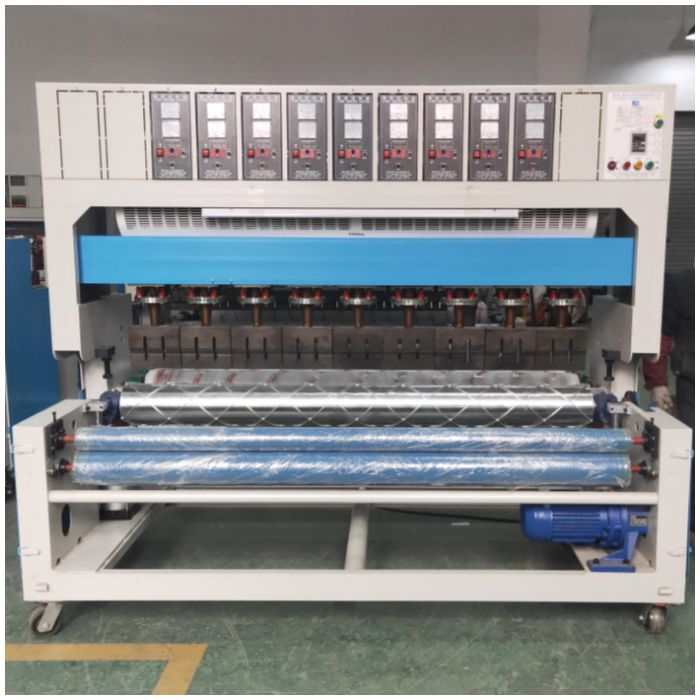

Quilting machine ultrasonic
---The perfect combination of modern technology and traditional craftsmanship

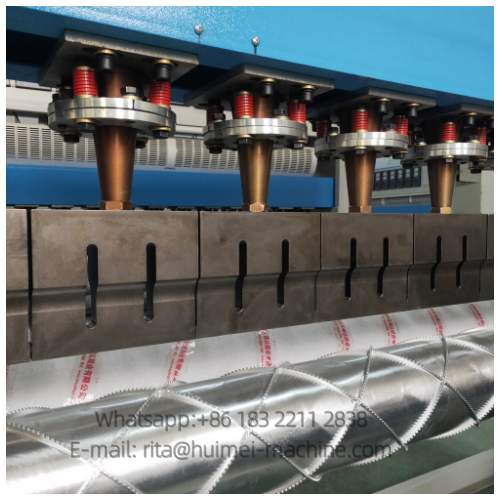

Quilting machine ultrasonic breaks through the traditional quilting mode. It uses ultrasonic vibration to make the fabric rub to achieve sewing without using needles and threads. The quilting speed is faster, the quilting effect is more beautiful, smooth, and there are no thread ends. It is suitable for large production lines and fabrics with high requirements for sewing effects.
In order to give you a more detailed understanding of our ultrasonic quilting machine, its data and features are listed below:
| Product Model | HM-U011800 | HM-U012200 | HM-U012400 | HM-U012600 | HM-U013000 |
| Width | 1800 mm | 2200 mm | 2400 mm | 2600 mm | 3000 mm |
| Machine size | 2240*1050*1950 mm | 2700*1050*1950 mm | 2850*1050*1950 mm | 3050*1050*1950 mm | 3450*1050*1950 mm |
| Packing size | 2440*1250*2150 mm | 1900*1250*2150 mm | 3050*1250*2150 mm | 3250*1250*2150 mm | 3650*1250*2150 mm |
| Power | 380 V 3-10 KW | 380 V 4-10 KW | 380 V 5-12 KW | 380 V 5-12 KW | 380 V 6-13 KW |
| Quilting Speed | 300-1800 m/hour, the lighter fabric, the faster speed | ||||
| Ultrasonic Frequency | 15 k, 18 k, 20 k is optional , detail frequency depends on fabric thickness and pattern complexity | ||||
Quilting machine ultrasonic
Comparison between quilting machine ultrasonic and traditional quilting machine
1.Fast sewing speed: Traditional sewing is done by passing a needle and thread through the fabric one stitch at a time, while quilting machine ultrasonic does not require the use of needle and thread. Instead, objects are pressed together to form a fusion in a very short time, so the sewing speed is much faster than traditional sewing. the speed of quilting machine ultrasonic is 300-1800 m/h, The lighter fabric, the faster speed.
2. Good quilting effect: Ultrasonic quilting is more beautiful and smooth, and there will be no thread ends, while traditional quilting is prone to problems such as thread ends or thread breaks, causing damage to the fabric.
3.Wide range of applications: Ultrasonic quilting is suitable for large-scale production lines and fabrics with high requirements for sewing effects. Its finished products are suitable for knitting, printing and dyeing, clothing, shoemaking, interior decoration, bedding and automotive decoration industries. Ordinary quilting is suitable for home sewing, small-scale production and sewing DIY enthusiasts.

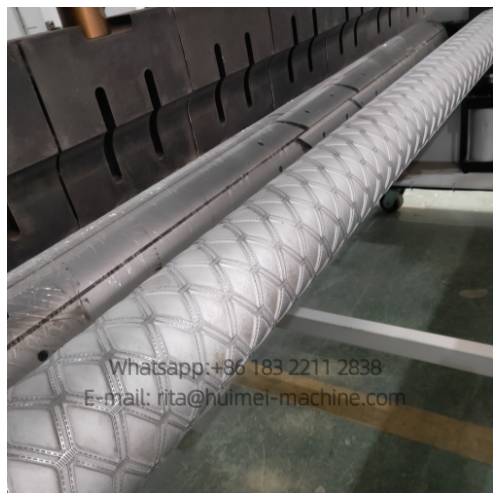

4.The pattern can be customized according to customer requirements. The diameter of the flower roller ranges from 165-195 mm. 176 mm is standard.
The package of quilting machine ultrasonic
1.bulk packing with plastic cover is standard
2.Wooden box packing is available
The serive of quilting machine ultrasonic
1. Various effective widths can be customized （1550 mm, 1800 mm, 2200mmm ,2400 mm, 3000 mm etc.)
2. configuration suggestion based on your detail requirement
3. only 1 set as trailer order to check the quality
4. Payment ways : T/T, paypal, alipay, western union etc.
5. Welcome to inspect the factory and study how to operate the quilting machine ultrasonic
6. 24/7 online service
WhatsApp: +8618322112838
