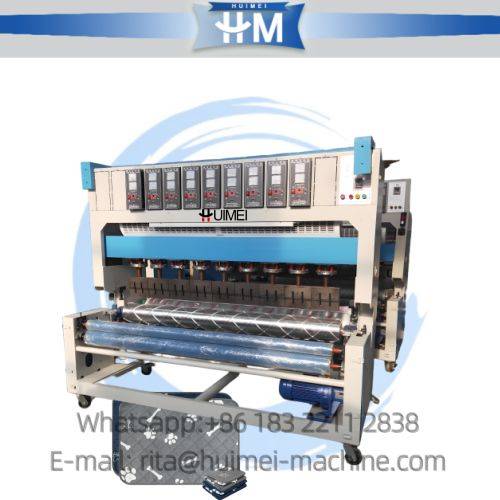

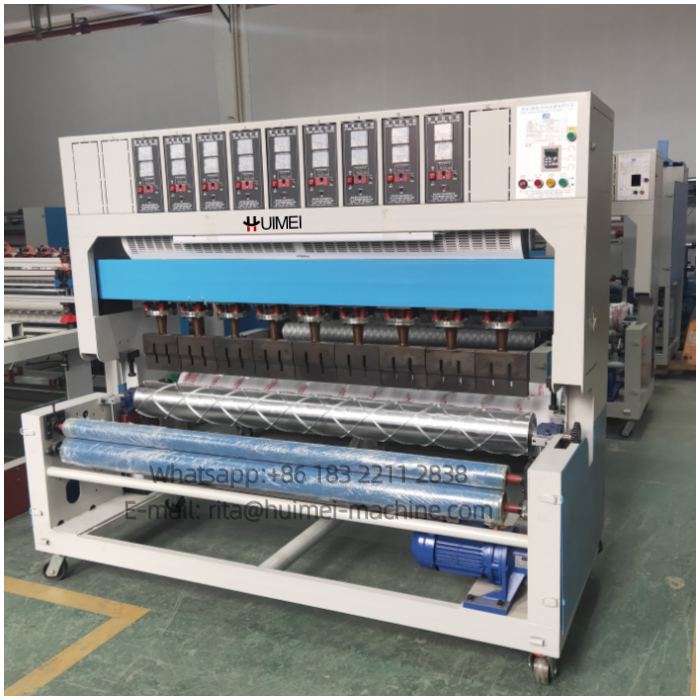

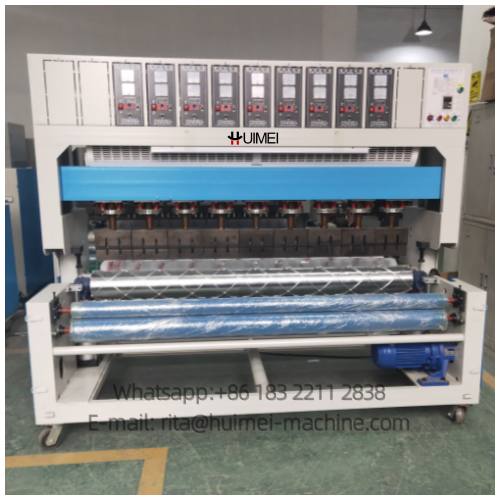

Automatic fabric quilting machine ultrasonic
various width is available (1800 mm, 2200mm, 2400 mm, 2600 mm, 3000 mm);
a variety of ultrasonic frequencies are available （15k, 18k, 20k) based on different weight;
whatsapp: +86 18322112838
E-mail: rita@huimei-machine.com
Compared with traditional quilting, Quilting machine ultrsaonic does not have the trouble of thread breaking and changing, has high precision, beautiful appearance, fast quilting speed, low cost, and does not require glue and other raw materials.
In order to help you choose the most suitable product, we explain the characteristics of quilting machine ultrasonic as follows:
1) Various product specifications and multiple effective widths are available
| Model | HM-U01-1800 | HM-U01-2200 | HM-U01-2400 | HM-U01-2600 | HM-U01-3000 |
| Heads | 12 | 15 | 16 | 17 | 20 |
| Width | 1800 mm | 2200 mm | 2400 mm | 2600 mm | 3000 mm |
| Machine size | 2240*1050*1950 mm | 2700*1050*1950 mm | 2850*1050*1950 mm | 3050*1050*1950 mm | 3450*1050*1950 mm |
| Pack size | 2440*1250*2150 mm | 2900*1250*2150 mm | 3050*1250*2150 mm | 3250*1250*2150 mm | 3650*1250*2150 mm |
| Power | AC 380 V 3-10 KW | AC 380 V 4-10 KW | AC 380 V 5-12 KW | AC 380 V 5-12 KW | AC 380 V 6-13 KW |

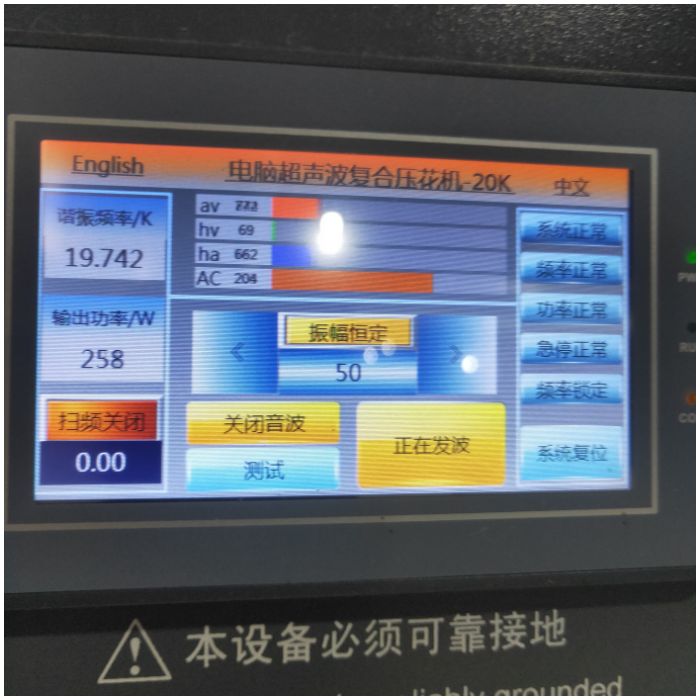

2) According to the different fabric weight, we provide 15 k, 18 k ,20 k quilting machine ultrasonic
3)Wide range of fabrics.
It can perform high-frequency ultrasonic embossing,hot stamping, transfer printing, and lamination on flat flexible materials such as artificial cotton, non-woven fabrics, chemical fiber fabrics, silk, leather, and so on.
Notice: The cotton content does not exceed 70%, polyester cotton is ok.
4) High Efficient and embossing fast

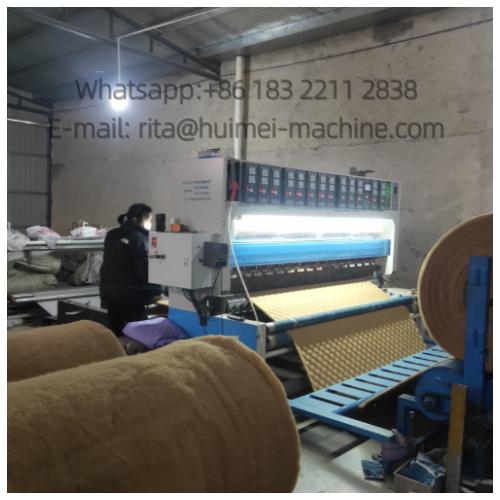

A large area of quilting work can be completed in a short time, greatly improving production efficiency. Embossing speed 300-1800 m/h, 300 meters of fabric weighs 300/400g. The lighter the fabric, the faster the speed.
5) Strong and durable: Since quilting machine ultrasonic uses heat generated by high-frequency vibration to fuse materials together, the strength of the seams is usually higher than that of traditional sewing thread seams.
6) Beautiful and neat: The pattern can be designed with different flower rollers according to requirements. It can form a uniform and delicate pattern with a smooth surface and no obvious seams, which improves the appearance quality of the product.

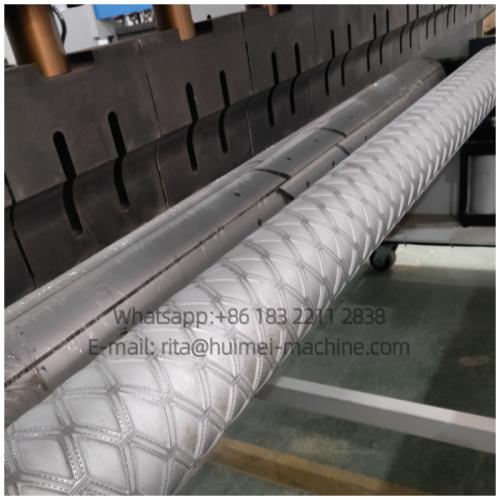

7）various specification of flower rollers. the standard diameter is 175 mm, the min diameter of flower roller is 165 mm, the max diameter is 190 mm,
8)Wide range of applications: Suitable for knitting, printing and dyeing, clothing, shoemaking, interior decoration, bedding and automobile decoration industries.
Quilting machine ultrasonic order:
1) MOQ: 1 set
2) package: plastic cover (standard) or wooden box packed (optional)
3) Powerless feeder and automatic rolling machine is supporting products (price included)
4) automatic cotton feeder and side cutting machine are optional
